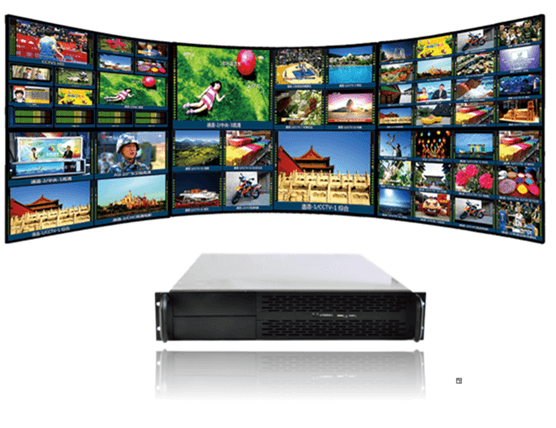

Dekscom EyeNet Multi-view Analyzer (EMA) is based on frame-by-frame comparison technology for real-time video content layer quality monitoring. It can detect various content layer video quality issues, such as black screen, still frame, video loss, video decoding anomaly and station caption loss. By comparing the audio PCM values, it provides audio quality monitoring of the program, it can detect audio loss, too high/lowvolume, and other audio faults. EMA provides superior video decoding performance, supports a wide range of protocol and encoding types. Flexible and convenient layout configuration features make it very easy to use, with a wealth of monitoring capabilities, to provide the most effective broadcast quality assurance.
Key Features and Functions
• Support real-time SD and HD video programs decode and display, use optimized scaling algorithm to ensure image quality
• Support multi-screen output, color audio VU meter, single program zoom to full screen, screen anti-burn function
• Support TV program sound or broadcast program monitoring
• Rich built-in screen templates, convenient self-drawn templates
• Support analog clock, digital clock, picture display, audio spectrum display
• Support for program carousels and separate real-time or carousel objects per window
• Each program can independently set alarm thresholds and switches, and classified alarm levels into serious, general, and negligible. Different levels of alarm strategies are different.
• Support all 5.1 channels playback and monitoring
• Support various video and audio problem detection, including program loss, video loss, audio loss, decoding abnormality, still frame, black screen, color-bar, too high volume, too low volume, station captionloss.
• Support video screen, title bar, OSD characters, border flashing, audible alarm, alarm log, database logging, SNMP, etc.
• Various video input formats supported, including: TS over UDP unicast/multicast, TS over RTP unicast/multicast, HTTP streaming, RTSP streaming, RTMP streaming, etc.
• Supported various video formats, such as MPEG-1/2, MPEG-4, H.264, AVS/AVS+, etc.
• Supported various audio formats, such as MP1, MP3, AAC/HE-AAC, AC-3, DRA, etc.
