EyeNet Video Analyzer Series

EVA—EyeNet Video Analyzer Series

EVA Video Analyzer High speed EVA probe EVA-Mini probe Portable EVA EVA-PDA handheld tester

The extensive application layer performance and user QoE measurement capabilities coupled with advanced drill-down troubleshooting capabilities make the EyeNet Video Analyzer (EVA) ideal for the Tier 2 and 3 field technicians and engineers of network equipment manufacturers and communication service providers, to install, monitor and troubleshoot the signaling and media quality issues of IP video services and networks.

Key Features

• Fully distributed system architecture design, fits for both local and remote test.

• B/S architecture design, Web based user interface; support multi-user web clients.

• Multi-Process design, allows each test port to run passive monitoring and active test independently.

• Robust real-time IP video statistics engine,24 x7 real-timemonitor IPTV&OTT video service quality.

• Support all kinds of video protocols and encapsulations, automatically detect and measure IPTV, VoD, MP4/FLV/3GP Progressive Download or HLS based OTT video streams.

• Real-time video and audio playback, watch and listen to MPEG-2, MPEG-4, H.264, H.265 and other installed Codecs in real-time.

• Powerful and flexible auto reporting with CSV and PDF file generation capability.

• Long-term video stream data files storage, support Wireshark pcap file import and export.

• Support various OSS integrations, e.g. FTP CSV file，WebService, SNMP Trap, etc.

• Extensive and configurable alarms, events, thresholds with user defined actions, including:Save the triggered streams to hard disk; Send SNMP Traps to OSS; Send Email for events notification.

• Expert analysis capability, automatically identify the IP video problem segments, including video source, CDN, IP network, and user device.

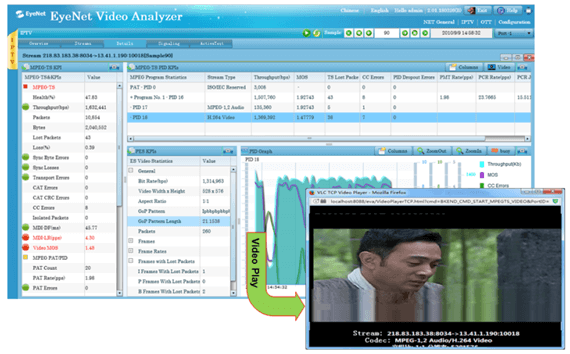

IPTV QoS/QoE Metrics

（1） Video Content Quality analysis

• Passive Mean Opinion Scores (MOS) measurement for MPEG Video and Audio

• MPEG PES I, P, B frame with lost packets

• MPEG Group of Pictures (GOP) analysis

• Audio and video content layer fault detection, such as black screen, still frame, blockiness, color-bar, monocolor screen, mute, plosion and other faults. etc.

（2） MPEG2-TS Quality analysis

• ETSI TR-101 290 event measurements

• Bandwidth utilization and bitrates

• Individual PID monitoring and analysis

（3） IP Transport Quality analysis

• RFC 4445 Media Delivery Index (MDI) metrics

• RTP packet loss, Jitter, sequence metrics

• RFC 3357 loss pattern sample metrics

（4） IP Video Transaction Quality analysis

• Passive IPTV channel Zapping analysis (support IGMP v2/v3 and MLD)

• VoD RTSP command response time

• EPG response time and success ratio

• Active IGMP/RTSP test (STB emulation)

（5） Support SPTS/ MPTS and various protocol stack, including MPEG-2 TS over UDP and/or RTP/UDP and/or RTSP/TCP and/or RTP/RTSP/TCP

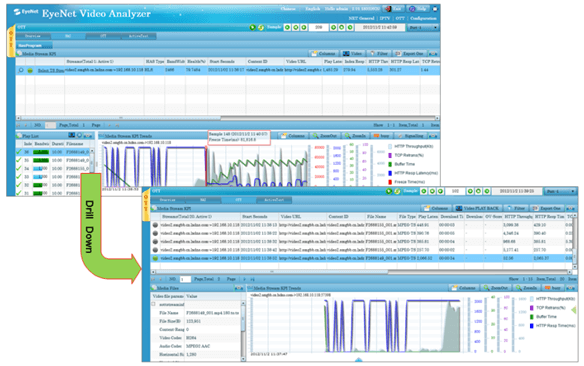

OTT/HLS QoS/QoE Metrics

• Extract KPIs from various container format (FLV, MP4, 3GP and MPEG-TS), such as .Video File Size, Program Length, Video Resolution, Video and Audio codec type

• Decode and display the playlist of HLS video with segment download status

• OTT/HLS video error code detection, such as HTTP 4xx/5xx error code, HLS error code, etc.

• Real-time HLS QoS/QoE measurements, including Video Play Latency, HTTP Response Time, Download Rate (bps), Freezing count and time, Segment Distance Variation, Segment Downloads Time Variation, Buffer Time, Out-of-sequence Segments

• Real-time TCP/IP QoS measurements, TCP Connection Time, Out-of-sequence TCP Packets, TCP Retransmissionsand Duplications, TCP Resets, TCP Low Window Packets and Size.

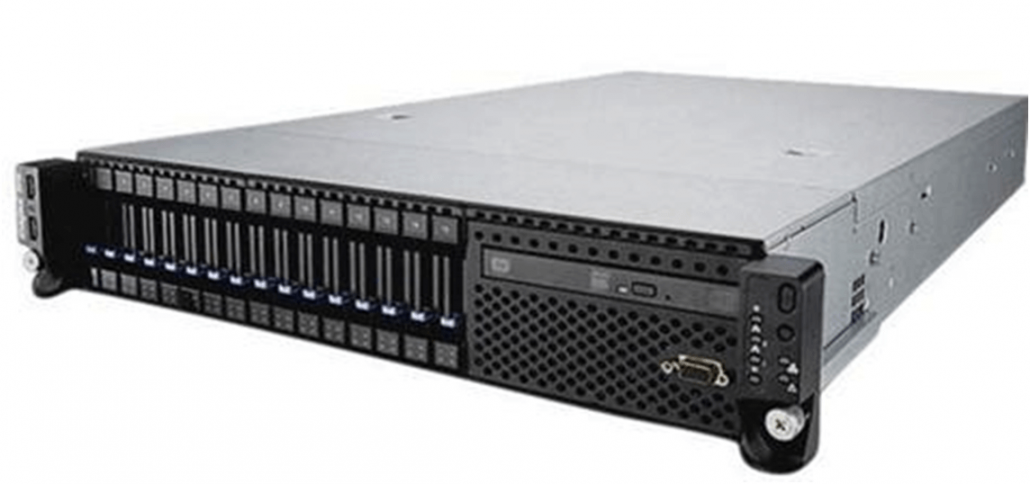

The EVA High Speed Probe (EVA-HS) consists of a high performance x86 PC server and a high speed Gigabit (or 10 Gigabit) Ethernet data acquisition card. The EVA-HS probe supports high-capacity real-time IP video stream processing at full line rate. It can be deployedat the SHE, VHO and IP backbone for real-time monitoring for all the multicast streams and VoD unicast streams.

EVA-HS-GE Probe

Hardware Configuration:

• CPU: Intel 2.4GHz 6-core processor (1-2 units)

• Memory: 4 / 8 / 16 / 32GB

• Hard Disk: 500G / 1T / 2T / 4TB

• Test ports: 2 / 4 / 8 / 12 / 16 Gigabit Ethernet (configurable RJ-45 or SFP SM / MM interface)

• Operating System: Linux CentOS 6.5 64bits

IP video media streaming processing capability:

• Up to 8Gb/s video traffic processing capability

• Up to 3000 channel H.264-SD streams

• Up to 1000 H.264-HD streams

EVA-HS-10GE Probe

Hardware Configuration:

• CPU: Intel 2.4GHz 8-core processor (1-2 units)
• Memory: 16 /32/64 GB
• Hard Disk: 1T / 2T / 4T / 8TB
• Test ports: 2 / 4 10GE interfaces (configurable SFP+ SM / MM interface)
• Operating System: Linux CentOS 6.5 64bits

IP video media streaming processing capability:

• Up to 16Gb/s video traffic processing capability
• Up to 6000 channel H.264-SD streams
• Up to 2000 H.264-HD streams

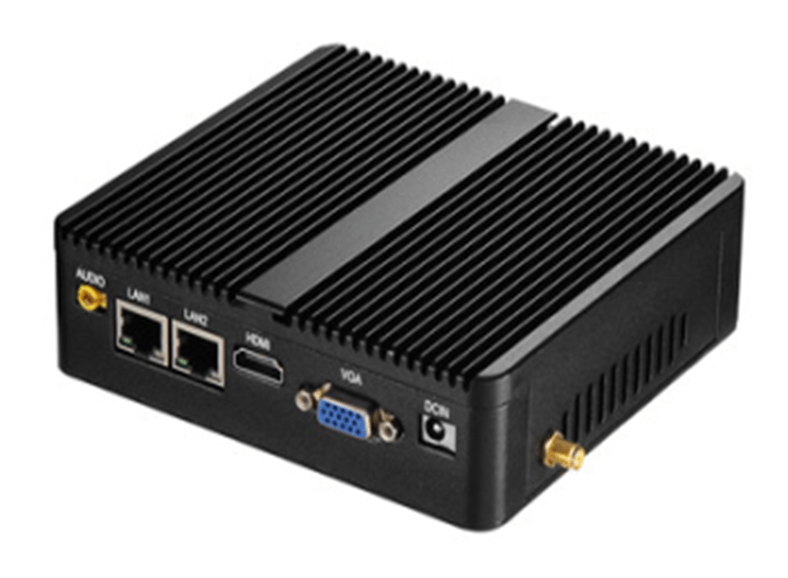

The EVA-Mini probe is a small, lightweight and fan-less probe for deployment at the broadband access network (eg. DSLAM, OLT, campuses, building, hotel, etc.) and home network.Itslong-term IP video passive monitoring andactive test capability is suitable for Tier2 & Tier3 support engineer to troubleshoot complex IP video problems from VIP customer’s complaints.

Its main features include

• Support up to 100 H.264-SD or 25 H.264-HD media streams

• Support passive IPTV/VoD, OTT/HLS traffic monitoring, real-time generates variousQoS/QoE metrics

• Support for STB Simulation, Active IGMP, RTSP, OTT/HLS Testing

• Support remote configuration and access via web browser

• Volume (mm): 150 (wide) x 130 (deep) x 40 (high)

• Hardware Configuration: Intel 4 Core CPU,32/64/128GB SSD, 4GB RAM.

• Support 2-4 Gigabit Ethernet (RJ-45 port)

• Support 2-4 USB 2.0/3.0 interface

• Support HDMI/VGA video output interface

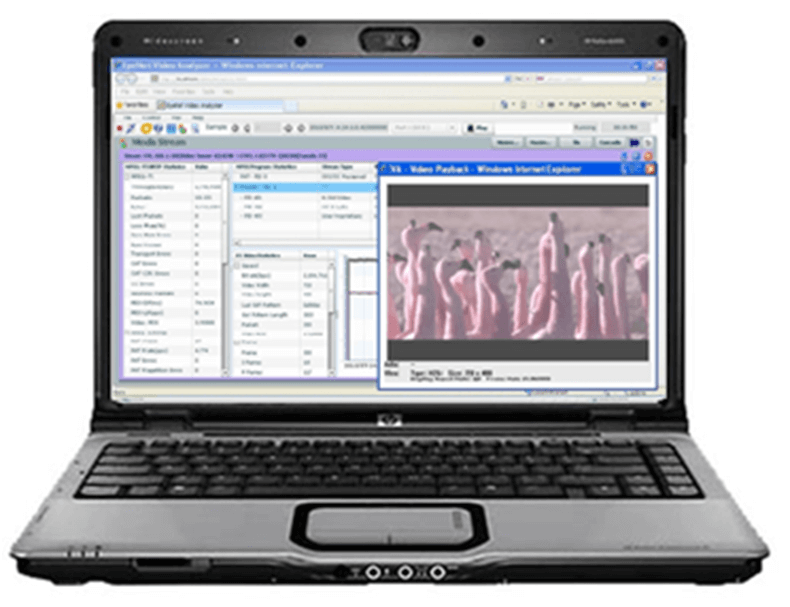

The EVA software can be installed on a Windows® based Laptop PC, which is suitable for network engineer to carry it for on-site IP video test and troubleshooting at broadband access network and subscriber’s home network environment. The EVA software uses the NDIS interface to capture and analyze IP video traffic from the network under test. It can simulate the Set-Top-Box (STB) with the active IGMP and RTSP test capability to join the specific multicast or VOD channels for QoS/QoE testing.

The PC requirements for the EVA software are

• Operating System: Windows Server 2003 / 2008, Windows XP Pro SP2, Win7, Win8, Win10

• PCI-E 10/100/1000 Mbps network card

• Dual-core CPU with Intel 2.0GHz or higher

• 2GB memory (or higher)

• Hard disk: at least 100GB free space, 7200 rpm

• Display: XVGA graphics card, 1024×768

Running on a PC that meets the above configuration, the EVA software can process 100-500 Mb/s IP video traffic in real-time. It can support

• 50-200 H.264-SD streams

• 10-50 H.264-HD streams

The actual EVA software processing performance depends on the PC’s NIC and CPU performance.

One-button testing for IPTV and OTT video service quality, quickly isolating Video program source, CDN platform, and IP network failures

Key Applications

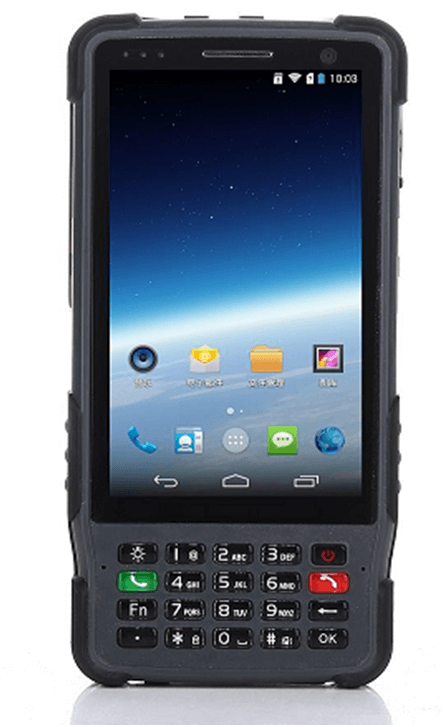

• Handheld PDA test instrument suitable for Tier-1 network maintenance personnel.

• Diagnose various IPTV, OTT video network and service quality issues, and quickly handle customer’s complaints.

• Acceptance test before IPTV service start-up, quickly generate start-up test report.

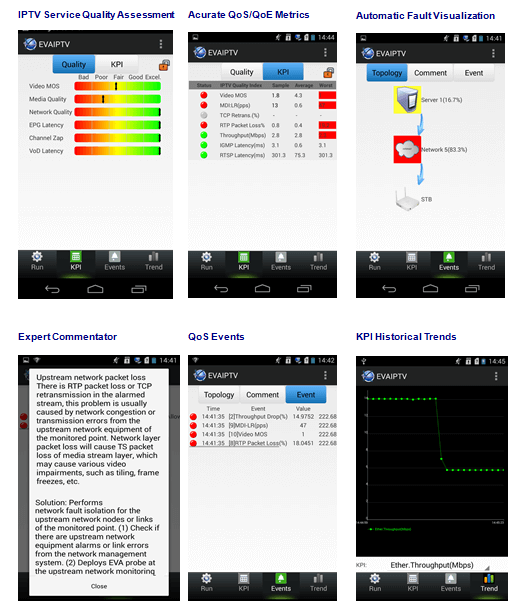

Key Features and Functions

• Passive monitoring,the EVA-PDA supports two 10/100/1000M Ethernet ports for passive data capture and monitoring between the home gateway and the IPTV set-top box.

• Active test,the EVA-PDA can simulate set-top box, and send IGMP multicast join/leave, RTSP VoDrequest, OTT/HLS liveor on-demand request messages for video stream testing.

• Expert system,the EVA-PDA can automatically identify various faults of video program source, video server and IP bearer network, and provide comments for the cause of the fault and common solutions.

• Accurate IPTV, OTT video user experience (QoE) measurement, including video quality (MOS), video re-buffering time and counts, channel zapping time, VoDlatency, EPG page response time.

• Comprehensive IPTV and OTT video protocol support, it can automatically detect and measure IPTV multicast stream and unicast stream, HLS live and on-demand unicast stream, OTT video stream based on FLV/MP4/MPEG-TS.

• Flexible and convenient network capture, single-click to start packet capture, automatically saved as pcap files; support alarm triggered capture to only capture data packets at the point of failure, easy to debug and test for occasional failures.

• Convenient test data upload,test data and pcap capture files can be uploaded to PDA central management server through LAN, WiFi, 3G/4G wireless network, and analyzed by EVA software or Wireshark.

• Easy to use, no configuration required, single-button to launch test, friendly graphical user interface, easy for Tier-1 maintenance personnel to quickly master and use.
